SideWinder

Technical

SideWinder comes in two versions

Cab mount and Trailer mount

  • Dimensions:  14” Diameter X 20”High
  • Weight: 35lbs
  • Materials: PVC, Delrin, Aluminum, Stainless, Spring Steel, DOT 3/8” I.D. Air Hose & ABS Electrical Cable
  • Air Hose/Cable Retractable Length: 9’.4”
  • Operation Air Pressure: 140-200psi
  • Operating Temperature: 180F to -60F
  • Air Hose/Cable Static Length: 4’ (Truck version), 2’ (Trailer version)
  • External Air supply installed on all SideWinder’s using ¼” Air quick coupler
  • U.S. Patent issued 2014
  • 3 year warranty

Cab Mount

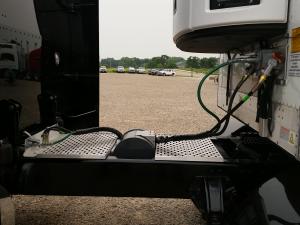

  • Cab version mounts directly in frame under the catwalk (bolts included)

Trailer Mount

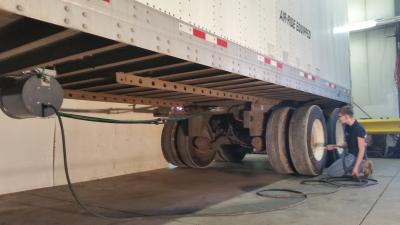

  • Trailer version requires special hanger bracket mounting up between “I” beams on 12” & 16” centers (Hanger Bracket sold separately)
  • Auxiliary Air supply shown

Testing

  • 1,000,000 road tested miles in all conditions
  • 100,000 lab tested operation cycles
  • Operation Temperature tested at 180F to -60F
  • Air pressure tested to 200psi

Regarding Maintenance

  • SideWinder’s are virtually maintenance free and are design for the elements, to clean simply spray with water.
  • It is recommended periodically to wipe the Air Hoses and Electrical when fully extended with Silicone spray or Wipes this will help the performance of the SideWinder’s operation.
